Measure the real world

Optimizing the performance of loudspeakers or measuring the acoustic of a room requires reliable measurements using a calibrated microphone.

Usually measurement microphones are powered by a phantom voltage generating preamplifier. This amplifier is then powered by a "Wall bug" or a battery. A setup with several boxes and interlinking cables is not practical, when you want to make fast and reliable measurements.

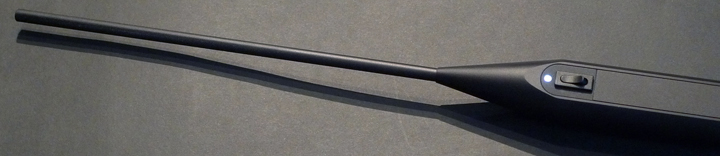

The Holm MIC 1 is a complete unit, with amplification and battery in the microphone body: All you need extra is a single RCA cable from the Holm MIC 1 microphone to your soundcard input or laptop.

Both the preamplifier and the battery power are included in the body of the microphone, to make it versatile, robust and easy to operate. Cable connection is made with gold plated RCA socket sending out a line signal level. The Holm MIC 1 measurement microphone easily drives long cables.

The goals of the application
- Measure Impulse-response
- Measure Phase-response
- Measure Frequency-response
- Measure Harmonic distortion (THD)
- Make bandwidth limited measurements with no phase-errors
- Compare measurements

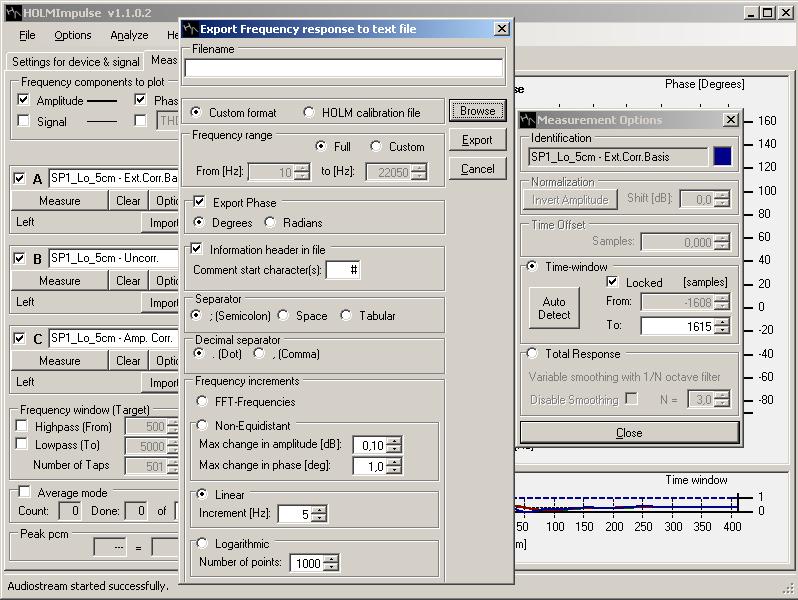

- Import Frequency- & Impulse-response
- Export Frequency- & Impulse-response
- Using open format for saved files (zip, wav/flac, txt)


Freeware License
HOLMImpulse is freeware (Non-Commercial) and works with any PC soundcard with no limitations We invite you to download and try it. HOLMImpulse Non-Commercial freeware LICENSE

HOLMImpulse and MIC 1?
The HOLM MIC 1 measurement microphone can easily be used with HOLMImpulse. The MIC 1 does not need phantom power and gives line-level output and can be used with ANY soundcard having line-in (Preferably) or mic-in.
